Home OnFloor with pew board
OnFloor with pew board
onfloor (4) onfloor (8) onfloor (2)
  • Boki
  • Products

OnFloor with pew board

  • Non-binding request
I agree with terms of personal data protection
cross

Standard dimensions

  • 3

    Standard heights

    140, 240 a 280 mm

  • 2

    Standard widths

    186 a 236 mm

  • 7

    Standard lengths

    od 800 do 2200 mm

OnFloor with WDF pew board is supplied with clean floor brackets only. The pew board brackets are included in the supply and it is necessary to order the pew board separately.

0,7 kW - 4 kW

Depending on the size of the body

Download

Here you will find important documents to download

Weight and volume

PDF / 118 KB

Contact

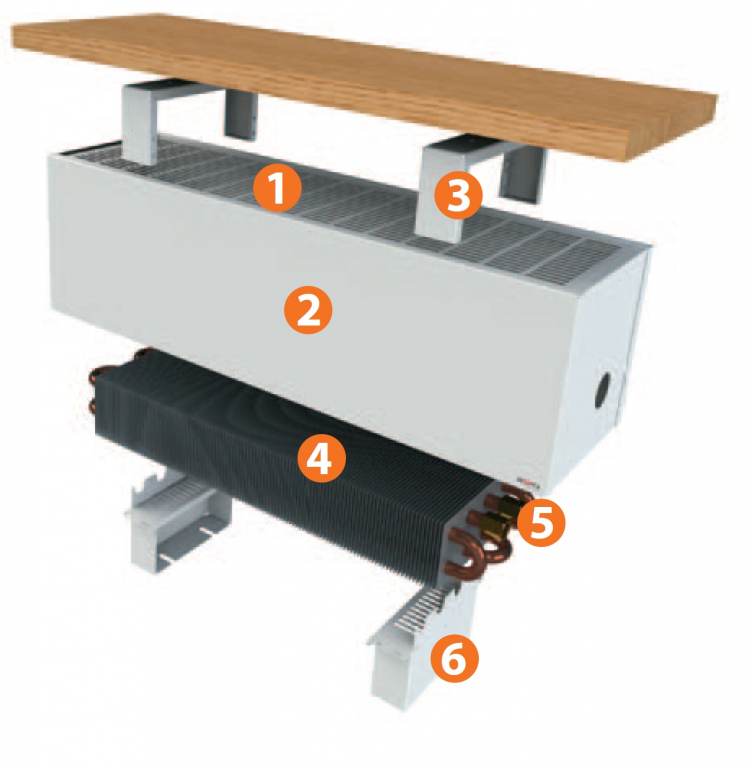

Standard OnFloor with pew board delivery includes:

  • unvarnished corrosion-resistant Cu/ Al low water content heat exchanger terminated with two inlets with G1/2″ by internal thread and 50 mm connection spacing,
  • sheathing with longitudinal duralumin grid,
  • sheathing and brackets are powder varnished in RAL 9016 white,
  • brackets for installation on finished or rough floor,
  • automatic air-vent valve,
  • pew board brackets,
  • beech pew board – matt lacquer.

Optional delivery on request:

  • regulatory features at the water side – thermostatic valve, shut-off valve,
  • thermostatic head,
  • varnishing of sheathing and other components in a different color shade than white,
  • varnished heat exchanger.

Table with heat outputs

Height 14 24 28
Width 19 24 19 24 19 24
Length Heat output (W) in accordance with EN 442 – 75/65/20 °C
080 739 963 1005 1310 1086 1416
100 924 1203 1257 1636 1358 1768
120 1108 1444 1508 1964 1630 2123
140 1332 1737 1812 2362 1959 2553
160 1556 2030 2116 2761 2287 2984
200 2003 2615 2724 3556 2945 3844
220 2227 2908 3029 3955 3274 4275

Grids

Since the cover grilles are the only visible element of the floor convectors, we offer a wide range of materials and designs. The basic division of the grid is with or without a cover strip. We produce grilles in the following materials: anodised aluminium, oak, beech, interior stainless steel.

More information about grids

Grille linear, stainless steel

Grille linear, stainless steel
Close

Grille roll-up, stainless steel

Grille roll-up, stainless steel
Close

Grille roll-up, wood

Grille roll-up, wood
Close

Grille linear, duralumin

Grille linear, duralumin
Close

Grille roll-up, duralumin

Grille roll-up, duralumin
Close
