Standard dimensions

  • 1

    Standard heights

    330 mm

  • 1

    Standard widths

    240 mm

  • 4

    Standard lengths

    1000, 1200, 1400, 1600 mm

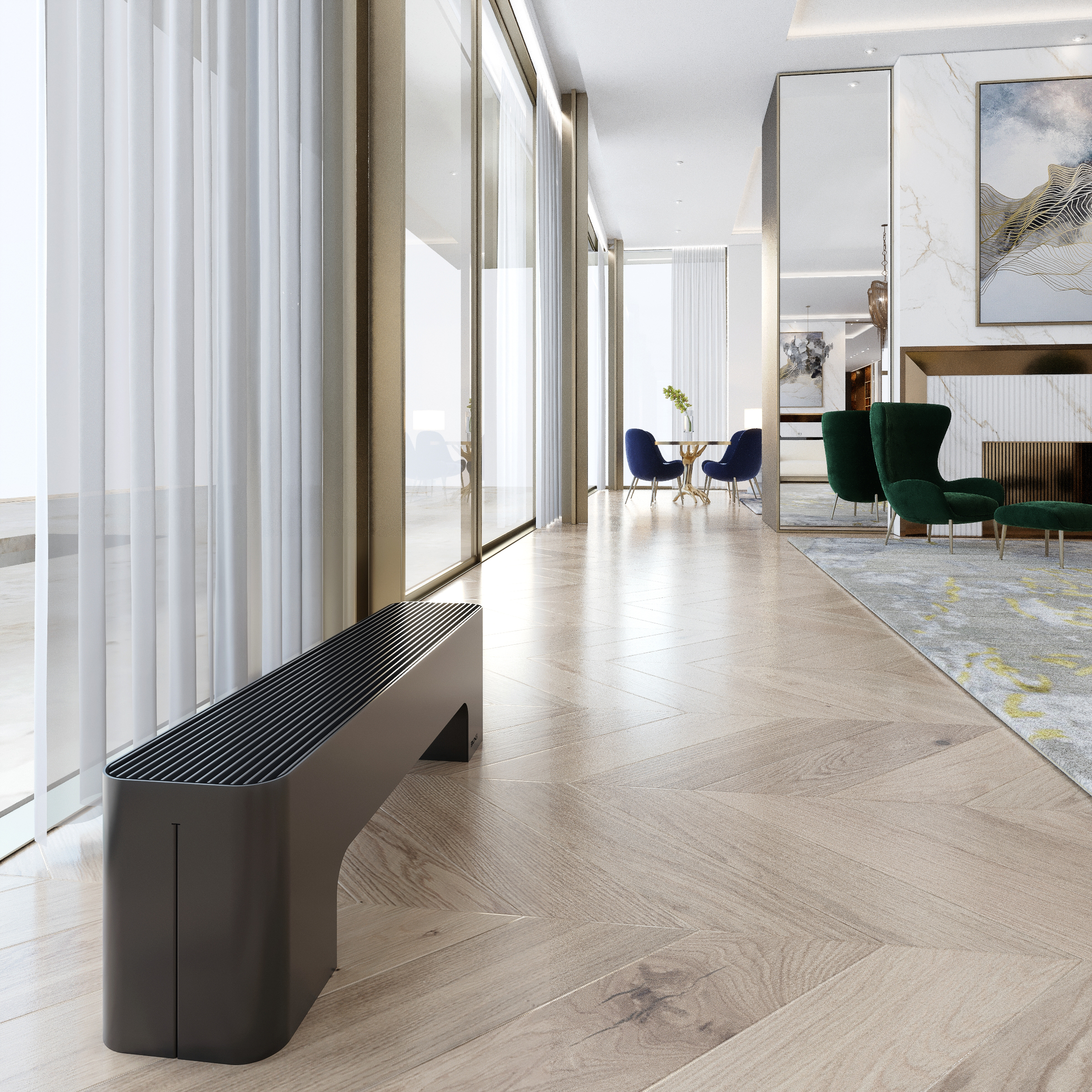

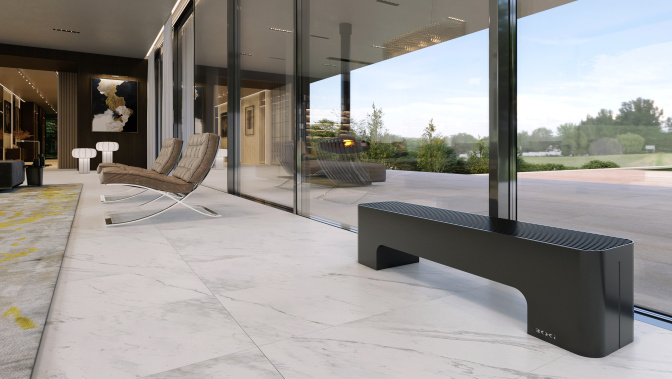

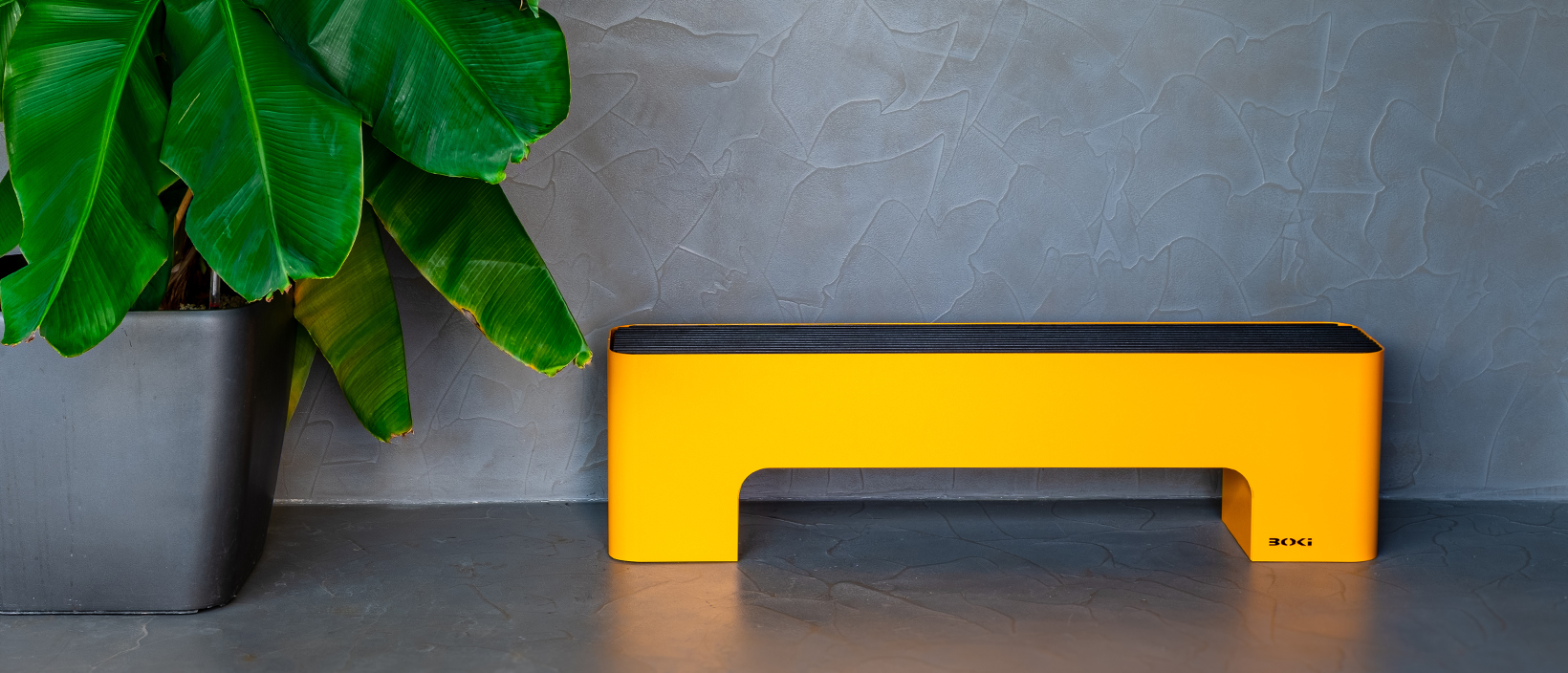

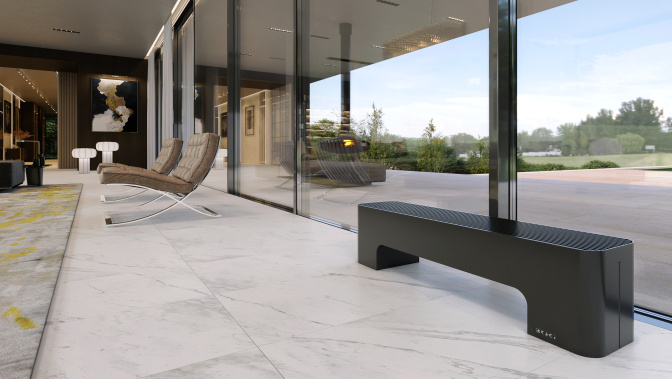

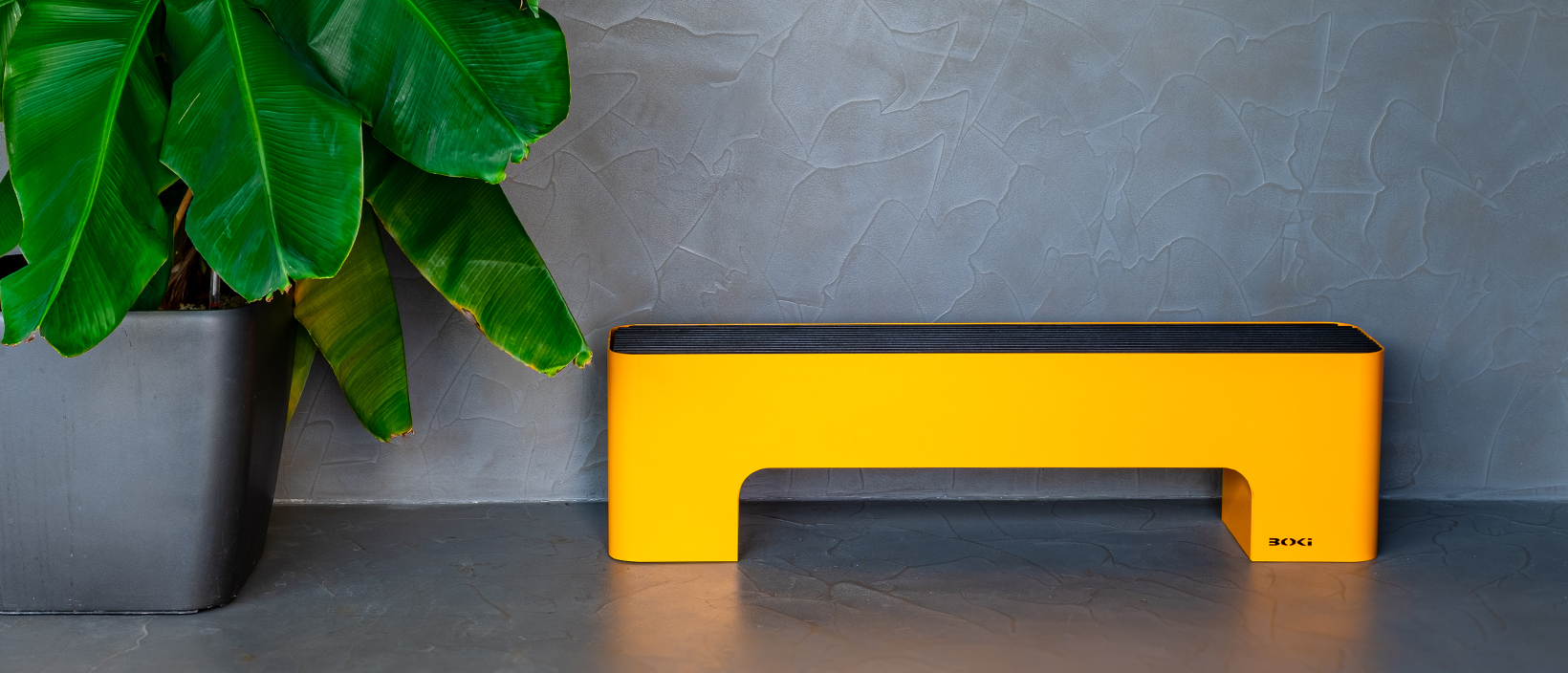

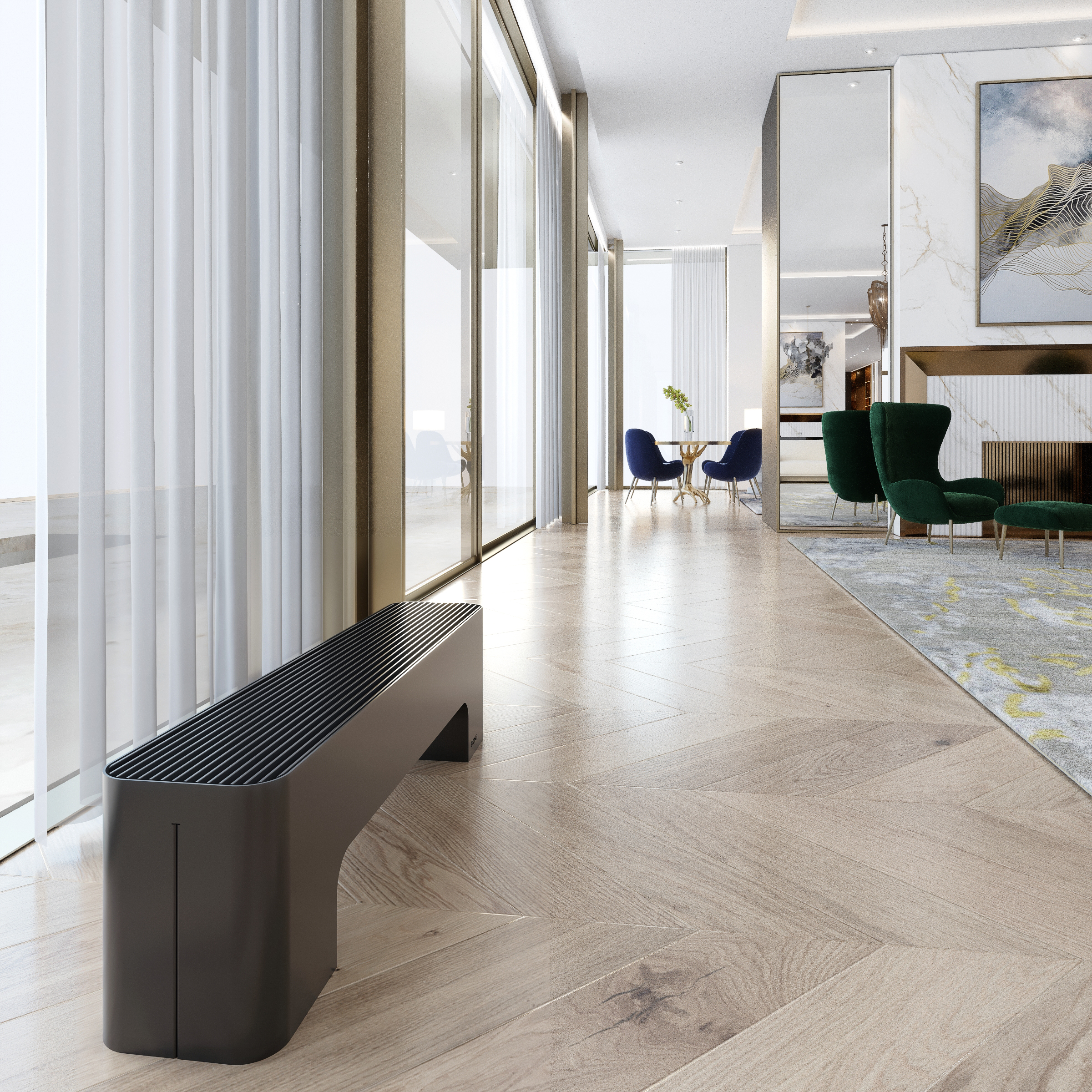

The timeless design of the AURA SCANDI brings a variety of possibilities and uses. The robust 3 mm steel sheathing with an aluminium grid ensures that the convector can handle a lot. It is therefore no wonder that among customers this type of convector is known as the “bench”. Due to the endless possibilities of color combinations of the sheathing and the grid, this heating element will find a place in every interior. The principle of operation of AURA SCANDI is similar to that of classic free-standing convectors where the heat exchanger made of copper and aluminium reacts swiftly to the temperature requirements of the room and completely compensates for the unpleasant cold penetration from the window. The convector sheathing is not directly heated by the heating water and thus effectively prevents energy loss through radiation against glazed surfaces (unlike conventional panel heaters), therefore reducing operating costs.

0,8 kW - 1,4 kW

Depending on the size of the body

Download

Here you will find important documents to download

/

AURA DESIGN

Enables installation to finished floor

Technical information:

Standard colors:

  • white RAL 9016
  • black RAL 9006 gloss
  • anthracite
  • black RAL 9006 deep matt

Other colors available upon request, including non-traditional color decors

Technical information:

  • Each heating element tested at a pressure of 0.65 MPa
  • Operating pressure max. 0,5 Pa
  • Air-vent valve 1/2′ included in the package

Table with heat outputs



Length (cm) Output (W)
(75/60/20) °C
S 100 831
M 120 1016
L 140 1200
XL 160 1385

Grids

Since the cover grilles are the only visible element of the floor convectors, we offer a wide range of materials and designs. The basic division of the grid is with or without a cover strip. We produce grilles in the following materials: anodised aluminium, oak, beech, interior stainless steel.

More information about grids

Grille linear, duralumin

Grille linear, duralumin
