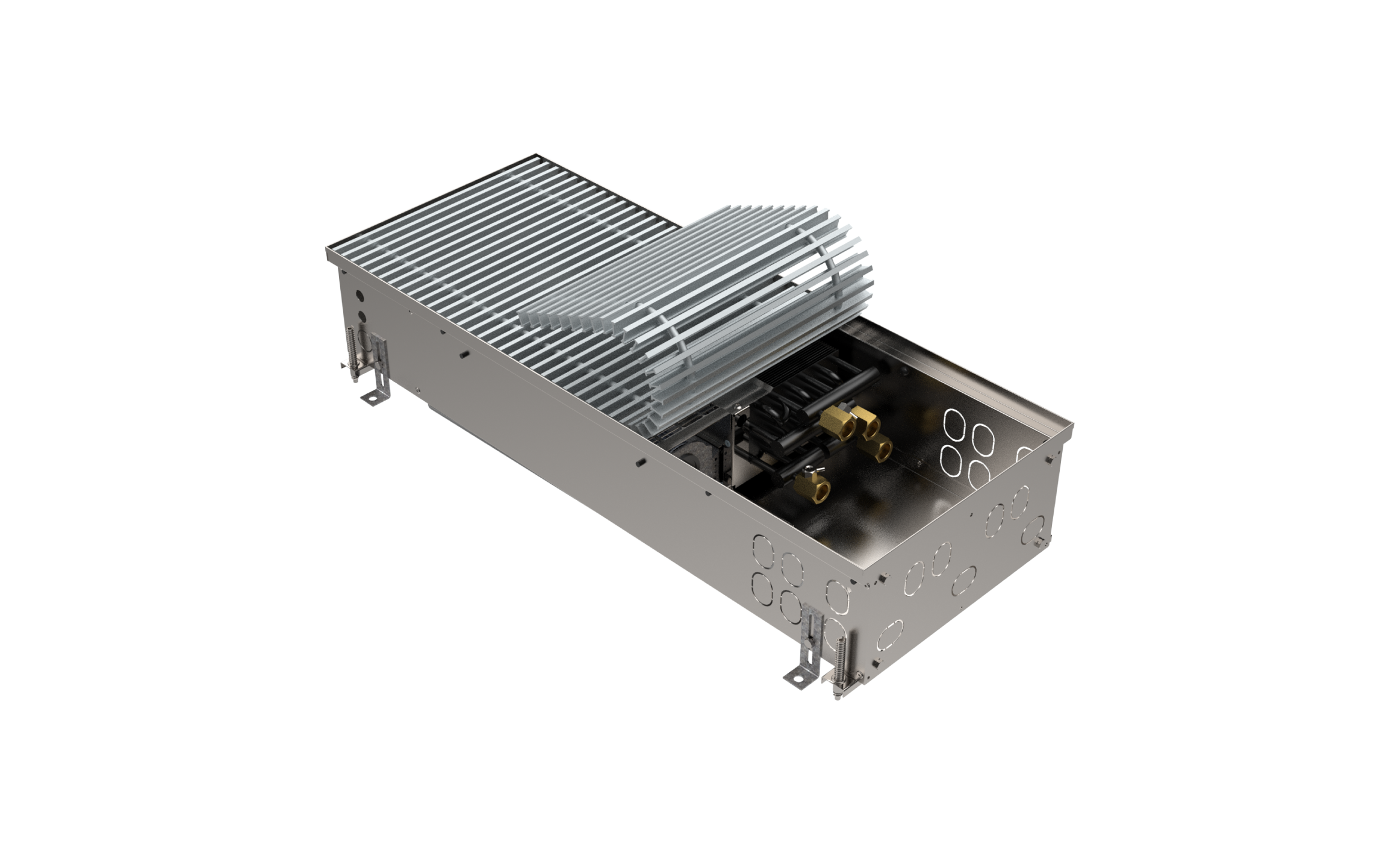

InFloor F4V

Non-binding request

Basic information
Technical specification

Standard dimensions

1
Standard heights

(170 mm)
1
Standard widths

(340 mm)
6
Standard lengths

(od 850 do 2700 mm)

the highest heat output of all types of convectors
intensive heating and cooling of the interior
230 V voltage for very high cooling output
suitable for low temperature heating systems and heat pumps
room thermostat control – three-stage fan speed control or 0-10 V continuous fan speed control
customization – dimensions, shape modifications

0,6 kW - 4 kW

Depending on the size of the body

Download

Here you will find important documents to download

Scheme F4V

PDF / 314 KB

Losses F4V

PDF / 270 KB

Output F4V

PDF / 367 KB

Connection definition F4V

PDF / 61 KB

Contact

Standard InFloor F4V delivery includes:

duct made of galvanized sheet varnished in RAL 9005 black with condensate tray made of stainless steel sheet DIN 1.4301 (ČSN 17241, AISI 304)

duct fronts and sides with knock-out holes for water connection to the piping and cabling
accessories including M8x30 levelling bolts, setting brackets for fixing the duct to the floor with anchor function in concrete, rubber grommets for the breakaway holes and flexible stainless steel connection hoses with gaskets

Cu/Al heat exchanger, varnished in RAL 9005 black, ending with four pipes with internal thread G 1/2′ and provided with air-vent valve
tangential fan with 230 V motor and protective grille
sheet covering the connection to the piping system
chipboard cover to protect the convector duct, fan and heat exchanger during transport and installation
condensate drainage set

Optional delivery on request:

duct made of interior stainless steel sheet e.g. AISI 304 or AISI 316Ti or other material according to customer’s requirement
speed regulators, room temperature sensor, room thermostats, remote control of room thermostats
shut-off valve, thermostatic valve, electrothermal valve actuator
water temperature sensor for switching between heating and cooling
external three-sided heat and acoustic isolation of the entire duct
varnishing of the duct, heat exchanger and other components in a different RAL color
unvarnished heat exchanger

Table with heat outputs

Width	340
Height	170
Speed level	1	2	3	1	2	3
Length	Heating 75/65/20 °C			Cooling 8/14/28 °C
850	637	1132	1415	293	522	652
1200	1274	2264	2830	586	1042	1303
1600	1892	3363	4204	871	1549	1936
2100	2697	4795	5994	1242	2208	2760
2400	3296	5860	7325	1518	2699	3374
2700	3952	7026	8782	1820	3236	4045

Grids

Since the cover grilles are the only visible element of the floor convectors, we offer a wide range of materials and designs. The basic division of the grid is with or without a cover strip. We produce grilles in the following materials: anodised aluminium, oak, beech, interior stainless steel.

More information about grids
