InFloor F2C

Non-binding request

Standard dimensions

2
Standard heights

(110 a 170 mm)
2
Standard widths

(230 a 340 mm)
6
Standard lengths

(od 850 do 2700 mm)

very high heat output
intensive heating of the interior
can be used as the only heat source
safe voltage 24 V

0,5 kW - 2,7 kW

Depending on the size of the body

Download

Here you will find important documents to download

Losses F2C

PDF / 375 KB

Scheme 1 F2C

PDF / 232 KB

Scheme 2 F2C

PDF / 252 KB

Pressure F2C

PDF / 414 KB

Contact

Standard InFloor F2C delivery includes:

duct made of galvanized sheet varnished in RAL 9005 black with condensate tray made of stainless steel sheet DIN 1.4301 (ČSN 17241, AISI 304)

duct fronts and sides with knock-out holes for water connection to the piping and cabling
accessories including M8x30 levelling bolts, setting brackets for fixing the duct to the floor with anchor function in concrete, rubber grommets for the breakaway holes and flexible stainless steel connection hoses with gaskets

Cu/Al heat exchanger, varnished in RAL 9005 black, ending with two pipes with internal thread G 1/2′ and provided with air-vent valve
tangential fan with 24 V EC motor and protective grille
sheet covering the connection to the piping system
chipboard cover to protect the convector duct, fan and heat exchanger during transport and installation

Optional delivery on request:

duct made of interior stainless steel sheet e.g. AISI 304 or AISI 316Ti or other material according to customer’s requirement
speed regulators, room temperature sensor, room thermostats, remote control of room thermostats

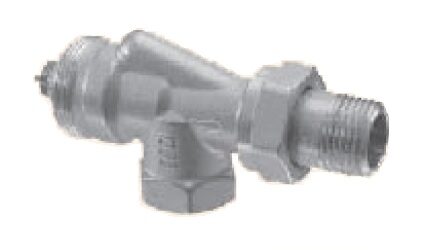

shut-off valve, thermostatic valve, electrothermal valve actuator
water temperature sensor for switching between heating and cooling
external three-sided heat and acoustic isolation of the entire duct
varnishing of the duct, heat exchanger and other components in a different RAL color
unvarnished heat exchanger

Table with heat outputs

Width	230						340
Height	110						170
Speed level	1	2	3	1	2	3	1	2	3	1	2	3
Length	Heating 75/65/20 °C			Cooling 8/14/28 °C			Heating 75/65/20 °C			Cooling 8/14/28 °C
850	501	890	1113	128	227	284	776	1380	1725	198	352	440
1200	1001	1780	2225	255	454	567	1553	2760	3450	396	705	881
1600	1487	2644	3305	379	674	843	2306	4099	5124	589	1046	1308
2100	2120	3770	4712	541	962	1202	3288	5845	7306	839	1492	1865
2400	2592	4607	5759	661	1175	1469	4018	7143	8929	1026	1823	2279
2700	3107	5524	6905	792	1409	1761	4817	8564	10705	1230	2186	2733

Grids

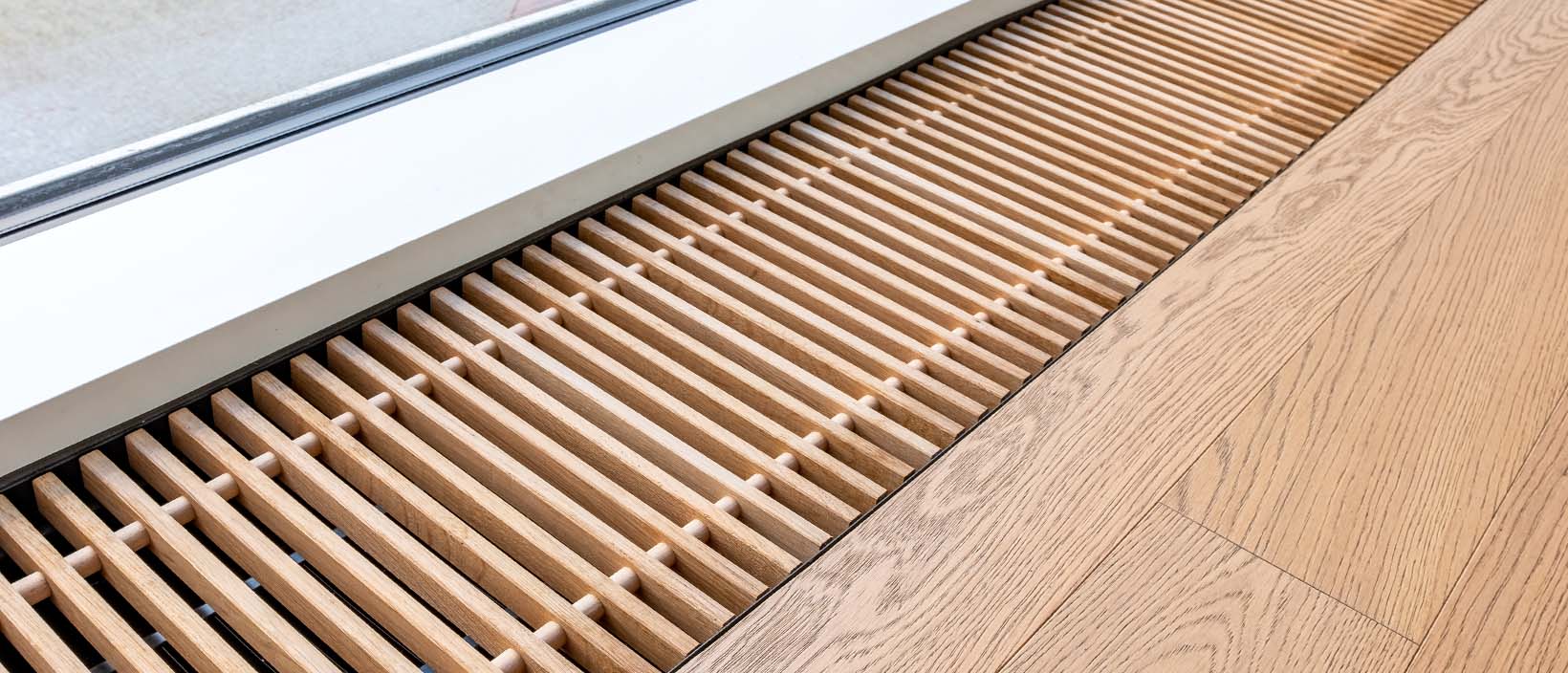

Since the cover grilles are the only visible element of the floor convectors, we offer a wide range of materials and designs. The basic division of the grid is with or without a cover strip. We produce grilles in the following materials: anodised aluminium, oak, beech, interior stainless steel.
