InFloor F1S

Non-binding request

Standard dimensions

2
Standard heights

(75 a 110 mm)
4
Standard widths

(170, 200, 230 a 250 mm)
11
Standard lengths

(od 700 do 2800 mm)

high heat output
can be used as the only heat source
low water content – fast response – energy savings
EC fan motors with low power input for safe 24 V voltage
noiseless fan operation
suitable for low temperature heating systems and heat pumps
room thermostat control – three-stage fan speed control or continuous fan speed control 0-10
customization – dimensions, shape modifications

0,2 kW - 9,8 kW

Depending on the size of the body

Download

Here you will find important documents to download

Losses F1S

PDF / 661 KB

Pressure F1S

PDF / 368 KB

Scheme F1S

PDF / 199 KB

Contact

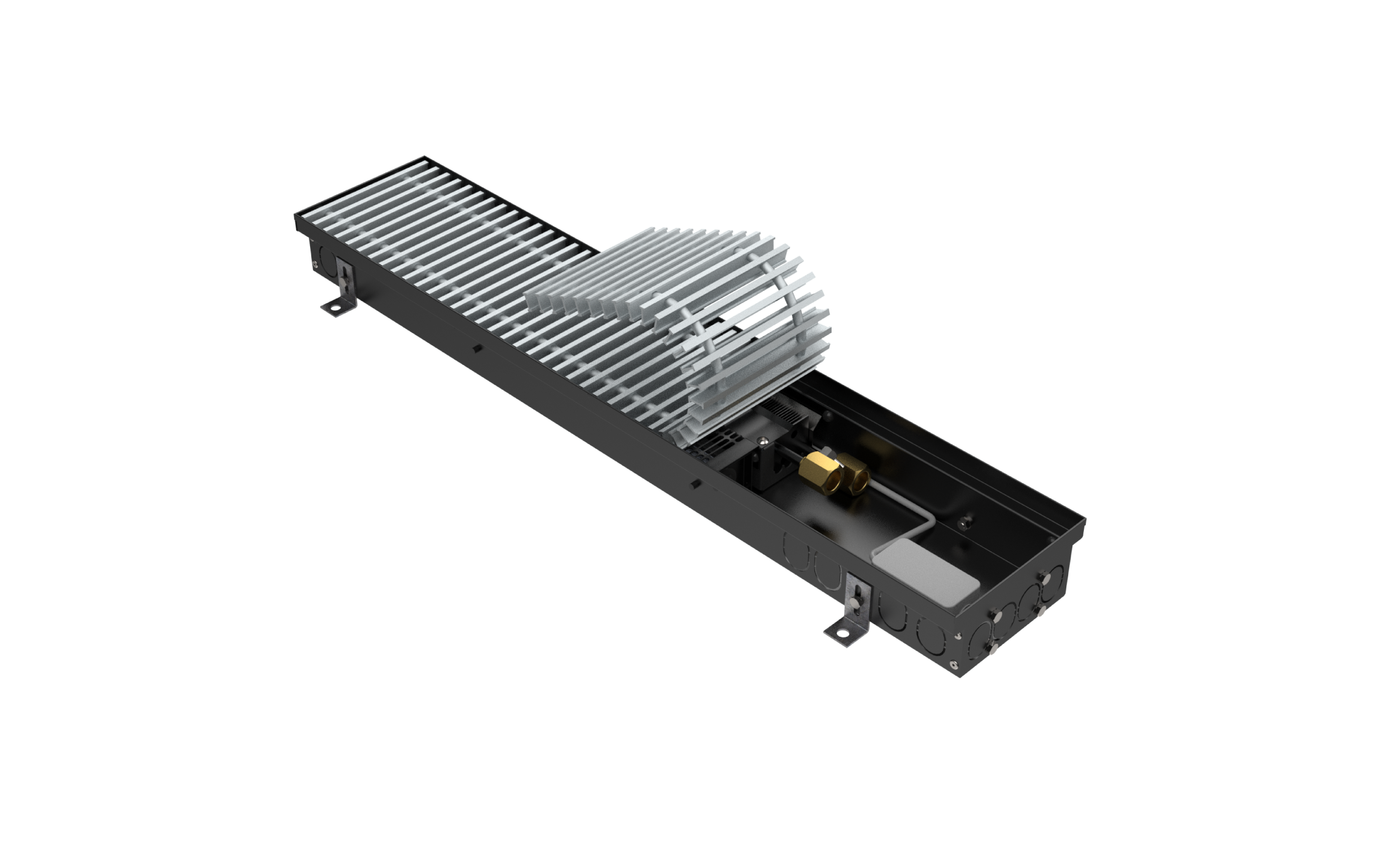

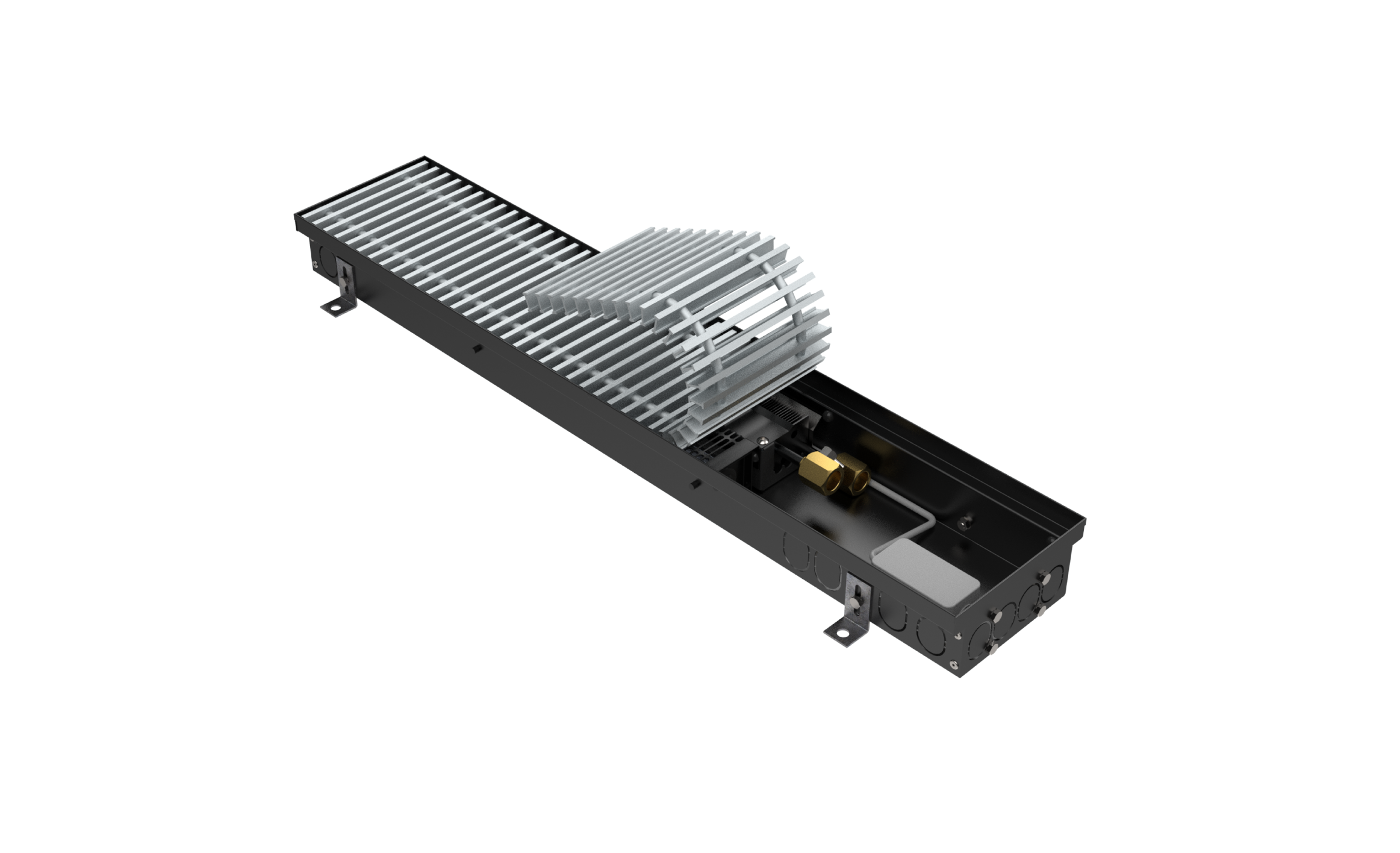

Standard InFloor F1S delivery includes:

duct made of galvanized sheet metal varnished in RAL 9005 black,

duct fronts and sides with knock-out holes for water connection to the piping and cabling
all visible components of the duct varnished in RAL 9005 black
accessories including M8x30 levelling bolts, setting brackets for fixing the duct to the floor with anchor function in concrete, rubber grommets for the breakaway holes and flexible stainless steel connection hoses with gaskets

Cu/Al heat exchanger, varnished in RAL 9005 black, ending with two pipes with internal thread G 1/2′ and provided with air-vent valve
tangential fan with 24 V EC motor and protective grille
sheet covering the connection to the piping system
chipboard cover to protect the convector duct, fan and heat exchanger during transport and installation

Optional delivery on request:

duct made of interior stainless steel sheet e.g. AISI 304 or AISI 316Ti or other material according to customer’s requirement
speed regulators, room temperature sensor, room thermostats, remote control of room thermostats
shut-off valve, thermostatic valve, electrothermal valve actuator
external three-sided heat and acoustic isolation of the entire duct
varnishing of the duct, heat exchanger and other components in a different RAL color
unvarnished heat exchanger

Technical solution of F1S convectors – advantages:

optimised use of the internal space of the duct
optimised fan length in relation to the heat exchanger
high heat output
high convectors efficiency
low cost per 1 W of heat output
low electrical input of the tangential fan
low operating costs
low noise level of the convector

Table with heat outputs

Width	170			200			230			230			250
Height	75									110
Speed level	1	2	3	1	2	3	1	2	3	1	2	3	1	2	3
Length	Heat output (W) in accordance with EN 16430 – 75/65/20 °C
070	192	342	427	285	506	633	313	556	695	397	706	882	541	962	1202
100	397	706	883	588	1046	1307	645	1147	1434	820	1458	1822	1117	1986	2482
130	602	1070	1338	891	1585	1981	978	1739	2174	1242	2209	2761	1693	3010	3763
150	714	1269	1586	1057	1878	2348	1160	2062	2578	1473	2619	3274	2007	3569	4461
180	875	1555	1944	1296	2303	2879	1422	2528	3160	1806	3211	4014	2461	4375	5469
195	987	1754	2193	1461	2598	3247	1604	2851	3564	2037	3621	4526	2775	4934	6167
210	1086	1930	2413	1608	2859	3574	1765	3138	3922	2242	3986	4982	3055	5430	6788
230	1197	2129	2661	1773	3153	3941	1947	3461	4326	2472	4395	5494	3369	5989	7486
240	1297	2306	2882	1921	3414	4268	2108	3747	4684	2678	4760	5950	3648	6486	8107
260	1409	2504	3130	2086	3708	4635	2290	4070	5088	2908	5170	6462	3962	7044	8805
280	1564	2780	3475	2316	4117	5146	2542	4518	5648	3228	5739	7174	4399	7820	9775

Grids

Since the cover grilles are the only visible element of the floor convectors, we offer a wide range of materials and designs. The basic division of the grid is with or without a cover strip. We produce grilles in the following materials: anodised aluminium, oak, beech, interior stainless steel.

More information about grids
