OnFloor Flat Classic and Basic

Non-binding request

Standard dimensions

6
Standard heights

140, 240, 280, 350, 500 a 600 mm
4
Standard widths

80, 130, 180 a 230 mm
15
Standard lengths

od 600 do 2000 mm

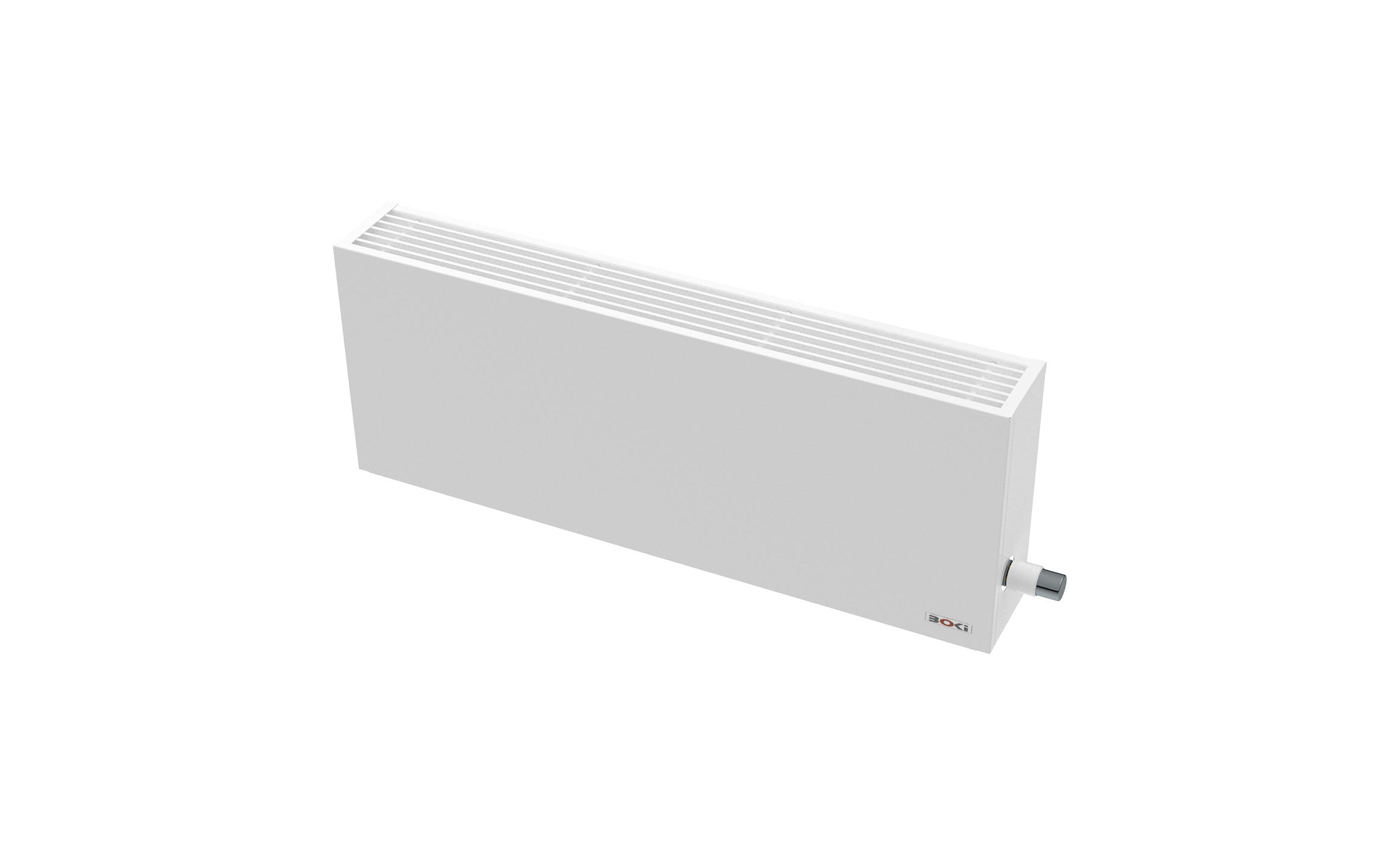

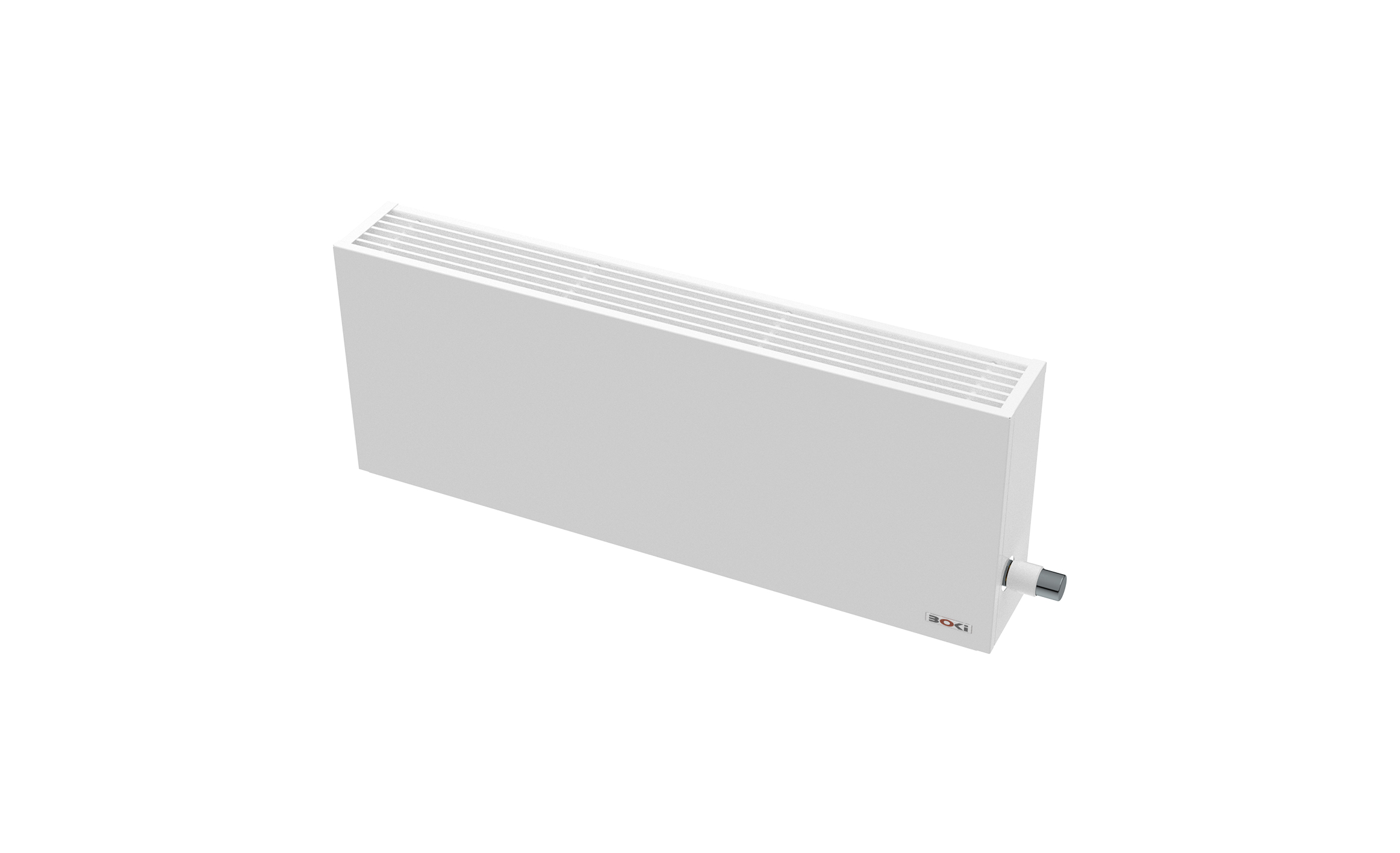

The Flat wall-mounted convectors represent a universal product suitable not only for combined installations with the OnFloor and InFloor convectors, but also for individual wall-mounted installations as a full-fledged equivalent of panel elements. Flat convectors meet the opposing requirements of minimum size, maximum output and design-friendliness. The concept of each type is based on a similar design of the external sheath with integrated grille as the OnFloor convectors with a high performance heat exchanger. The maximum proportion of convection and minimum proportion of radiant heating effectively promotes air circulation, even in large spaces.

0,1 kW - 6 kW

Depending on the size of the body

Download

Here you will find important documents to download

Flat - pressure losses

PDF / 334 KB

Flat - installation

PDF / 197 KB

Contact

Standard Flat delivery includes:

unvarnished corrosion-resistant Cu/ Al low water content heat exchanger terminated with two inlets with G1/2″ by internal thread and 50 mm connection spacing,
sheathing with longitudinal duralumin (Flat Classic) or steel die-cut grid (Flat Basic),
sheathing and brackets are powder varnished in RAL 9016 white,
brackets for wall mounting,
right side connection (in case of requirement for the left side connection, this must be stated in the order)
automatic air-vent valve.

Optional delivery on request:

regulatory features at the water side – thermostatic valve, shut-off valve,
thermostatic head,
varnishing of sheathing and other components in a different color shade than white,
varnished heat exchanger.

Table with heat outputs

Width	08						13						18						23
Height	14	24	28	35	50	65	14	24	28	35	50	65	14	24	28	35	50	65	14	24	28	35	50	65
Length	Heat output (W) in accordance with EN 442 – 75/65/20 °C
040	131	179	193	216	249	276	253	344	372	417	479	531	369	503	543	624	745	848	481	655	708	810	997	1161
050	164	223	241	270	311	344	316	430	464	521	599	663	462	628	679	781	931	1060	602	818	885	1013	1246	1452
060	197	268	290	325	374	414	379	515	557	625	718	796	554	753	814	937	1117	1272	722	982	1061	1215	1495	1742
070	229	311	337	378	434	481	442	601	650	729	838	929	647	880	951	1093	1303	1484	842	1145	1238	1418	1745	2032
080	262	356	385	432	496	550	506	688	744	833	958	1061	739	1005	1086	1249	1490	1696	963	1310	1416	1620	1994	2323
090	295	401	434	487	559	620	569	774	836	937	1078	1194	832	1132	1223	1405	1676	1908	1083	1473	1592	1823	2243	2613
100	328	446	482	541	621	689	632	860	929	1041	1197	1327	924	1257	1358	1561	1862	2120	1203	1636	1768	2025	2492	2904
110	360	490	529	593	682	756	695	945	1022	1146	1317	1459	1016	1382	1494	1717	2048	2331	1324	1801	1946	2228	2742	3194
120	393	534	578	648	745	826	758	1031	1115	1250	1437	1592	1108	1508	1630	1873	2234	2543	1444	1964	2123	2430	2991	3484
130	431	586	634	711	817	905	834	1134	1226	1354	1557	1725	1220	1660	1795	2030	2421	2755	1591	2163	2338	2633	3240	3775
140	469	638	689	773	888	984	909	1237	1337	1458	1676	1857	1332	1812	1959	2186	2607	2967	1737	2362	2553	2835	3489	4065
150	507	689	745	835	960	1064	985	1340	1448	1562	1796	1990	1444	1964	2123	2342	2793	3179	1884	2562	2769	3038	3739	4356
160	544	740	800	897	1031	1143	1060	1443	1559	1666	1916	2123	1556	2116	2287	2498	2979	3391	2030	2761	2984	3240	3988	4646
180	619	842	910	1021	1173	1300	1211	1648	1782	1875	2155	2388	1779	2420	2616	2810	3351	3815	2322	3158	3413	3645	4486	5226
200	695	945	1022	1146	1318	1460	1363	1854	2004	2083	2395	2653	2003	2724	2945	3122	3724	4239	2615	3556	3844	4050	4985	5807

Grids

Since the cover grilles are the only visible element of the floor convectors, we offer a wide range of materials and designs. The basic division of the grid is with or without a cover strip. We produce grilles in the following materials: anodised aluminium, oak, beech, interior stainless steel.
